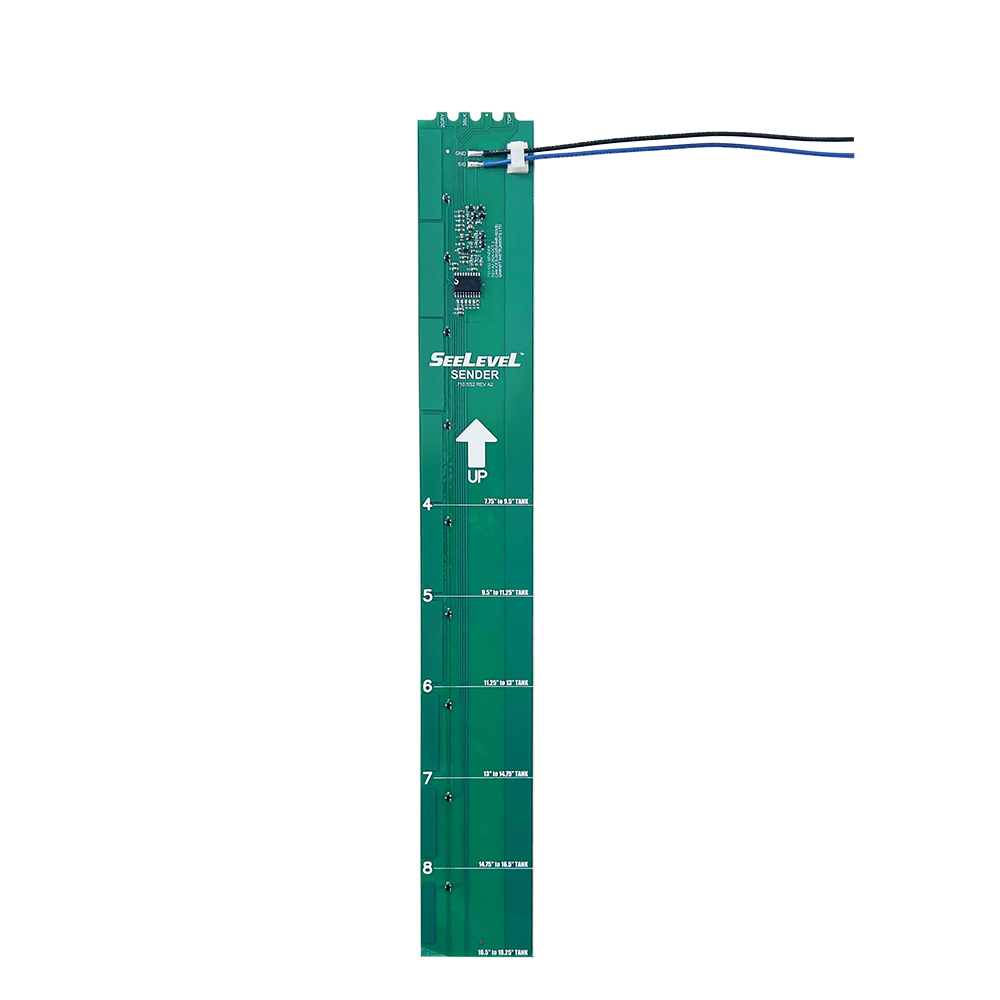

710-SS2 16" Sender

Item Code: 710-SS2

The 710-SS2 is 16" long and can be cut down to 6" in 2" segments. The 710-SS2 is ideal for tanks 6.5"-18" tall but can be stacked with an additional 710-SS2 to measure tanks as tall as 34". This sender ensures optimal performance for tall tank applications. The sender works on plastic/polyethylene, and fiberglass tanks.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

CA$75.69
EA (1)

Specifications

Specifications

Accuracy:  +/- 8% or better, limited by resolution and tank height and shape.

Resolution:  0.44” (11 mm)

Sender Materials:  Flexible glass epoxy circuit board with conformal coating for circuit protection. Laminated on the back with 3M 300LSE bonding adhesive.

Optimal Tank Height:  7.5” - 1” (single)  up to 34” (dual)  (On 4-tank models, the grey and galley tanks can only have one sender)

Number of Tanks Measured:  up to 7 tanks  (model dependant)

Sender Dimensions:  16.15” high x 2.20” wide

Operating Temperature Range:  +32 °F to +140 °F (0 °C to + 60 °C)

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library

Installation videos can be found on our Holding Tank Videos page.
