709-RVC NLP Display

The 709-RVC NLP Display monitors Battery Voltage, Fresh, Grey and Black levels. Display is equipped with RV-C interface for integration into MultiPlex systems. System includes (1) 709-RVC_NLP Display, (1) Pigtail Harness, Choice of (3) Senders and (4) Mounting Screws. Display works in conjunction with the 710-AR, 710-ES2 and 710-SS senders.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

Main Product

Required Part 1

Main Item Price CA$ 0.00
Optional Item Price CA$ 346.38
Price for this Configuration CA$ 346.38
CA$346.38

Specifications

Specifications

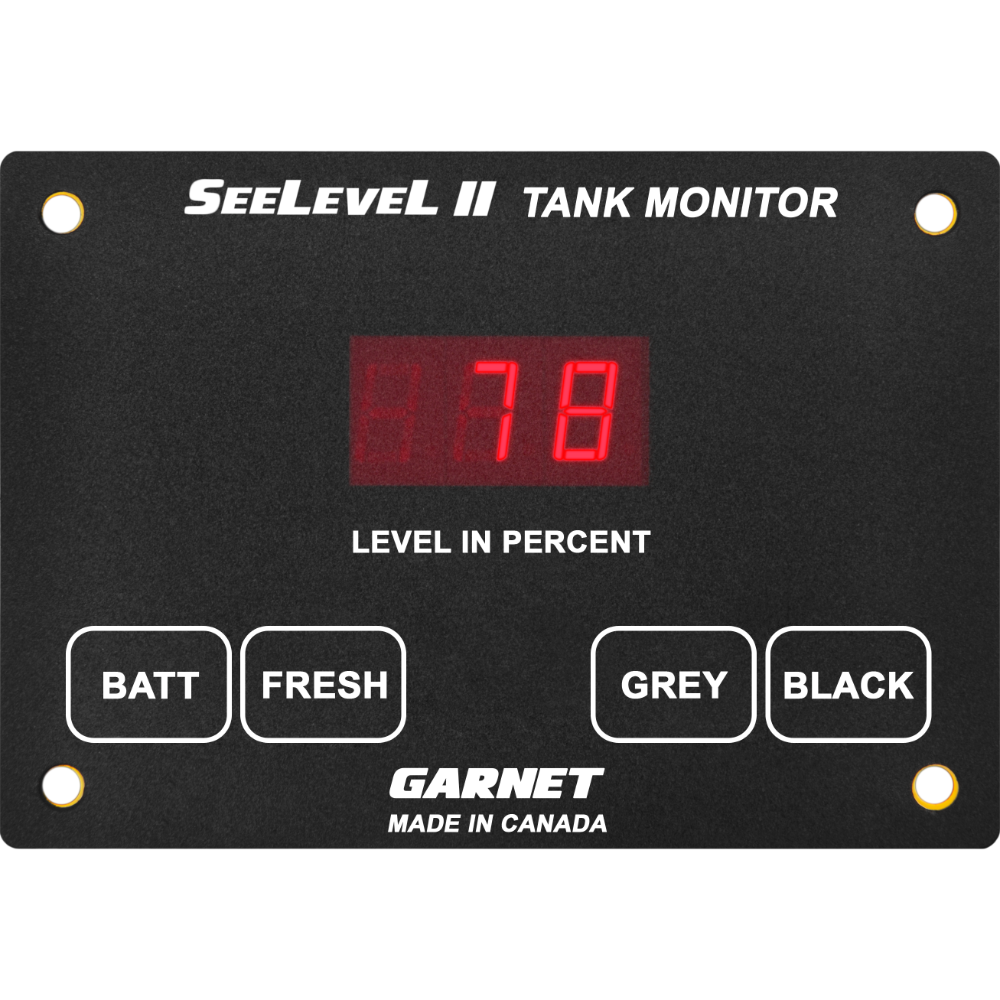

Display Panel: Black panel, approximately 4" wide by 2.8" high by 1" thick (102mm wide X 71mm high X 25mm thick). Panel screws to the wall.

System Power: Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts.  Current drain is less than 200mA.

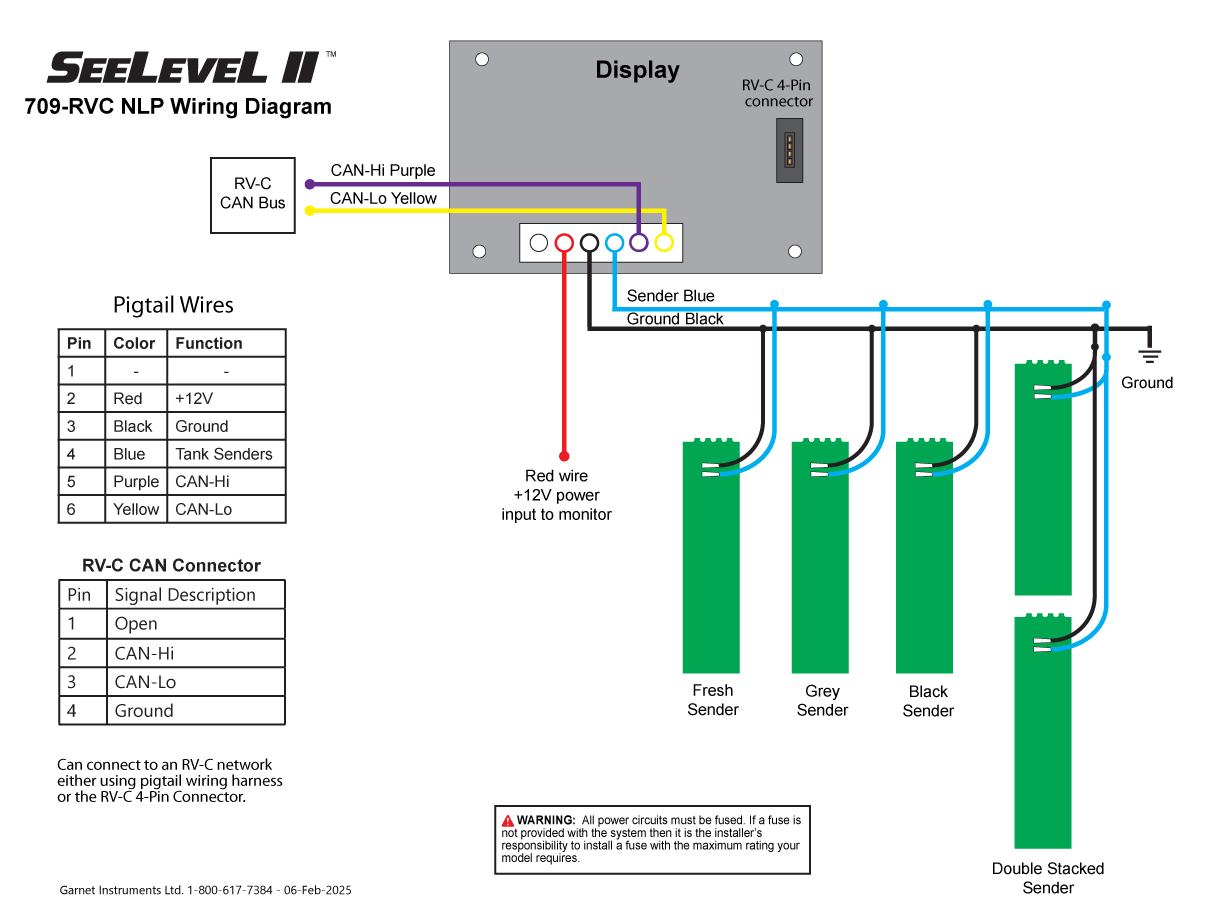

Wiring: A single two-wire conductor is required from the display to the senders. All the senders are wired in parallel. 12 V power and ground are required for display.

*Sender specifications can be found on each sender's own product page.

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library

Installation videos can be found on our Holding Tank Videos page.
