709-RVC PM Display

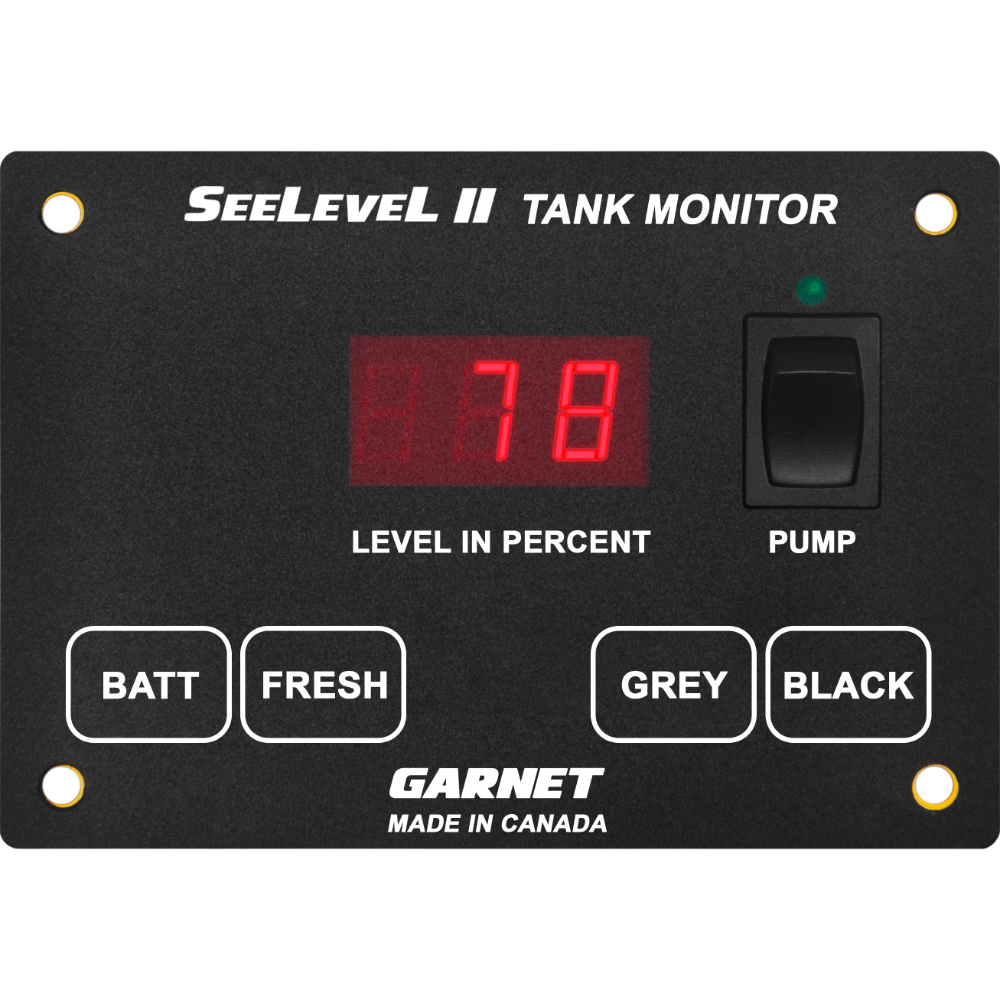

The 709-RVC PM Display monitors Battery Voltage, Fresh, Grey and Black levels. Display is equipped with RV-C interface for integration into MultiPlex systems and a momentary switch for latching relay pump systems. Display come with (1) Pigtail Harness and (4) Mounting Screws. Display works in conjunction with the 710-AR, 710-ES2 and 710-SS senders.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

Main Product

Required Part 1

Main Item Price CA$ 0.00
Optional Item Price CA$ 346.38
Price for this Configuration CA$ 346.38
CA$346.38

Specifications

Specifications

Display Panel: Black panel, approximately 4" wide by 2.8" high by 1" thick (102mm wide X 71mm high X 25mm thick). Panel screws to the wall.

System Power: Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts.  Current drain is less than 200mA.

Wiring: A single two-wire conductor is required from the display to the senders. All the senders are wired in parallel. 12 V power and ground are required for display.

Pump Switch: The pump switch is rated for a maximum of 10 amps. The use of a relay is required if more than 10 amps is needed for the pump.  *The pump wiring must be fused at 10 amps.

Pump Switch: The pump switch is rated for a maximum of 10 amps. The use of a relay is required if more than 10 amps is needed for the pump.  *The pump wiring must be fused at 10 amps.

*Sender specifications can be found on each sender's own product page.

Resources

Resources

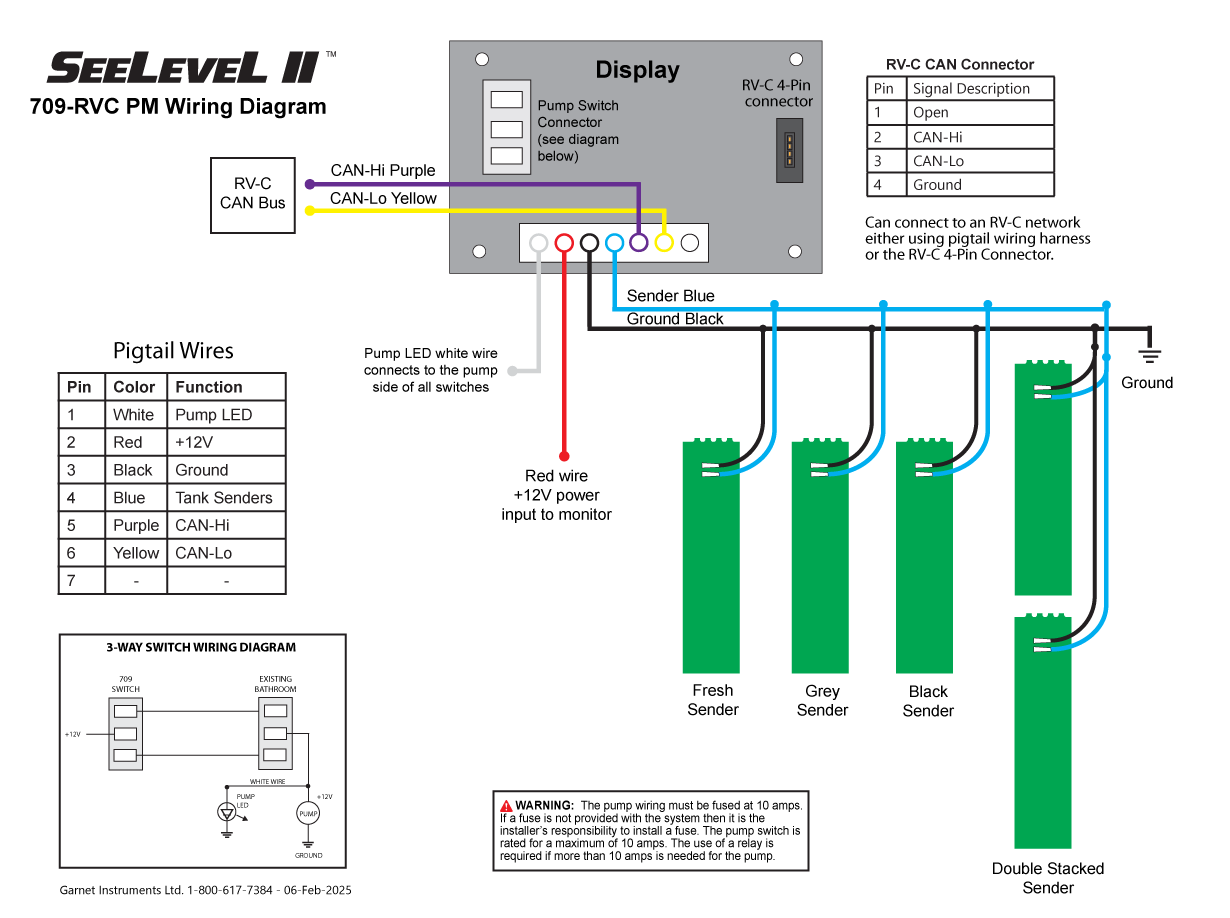

Download wiring diagrams and installation manuals from our Resource Library

Installation videos can be found on our Holding Tank Videos page.
