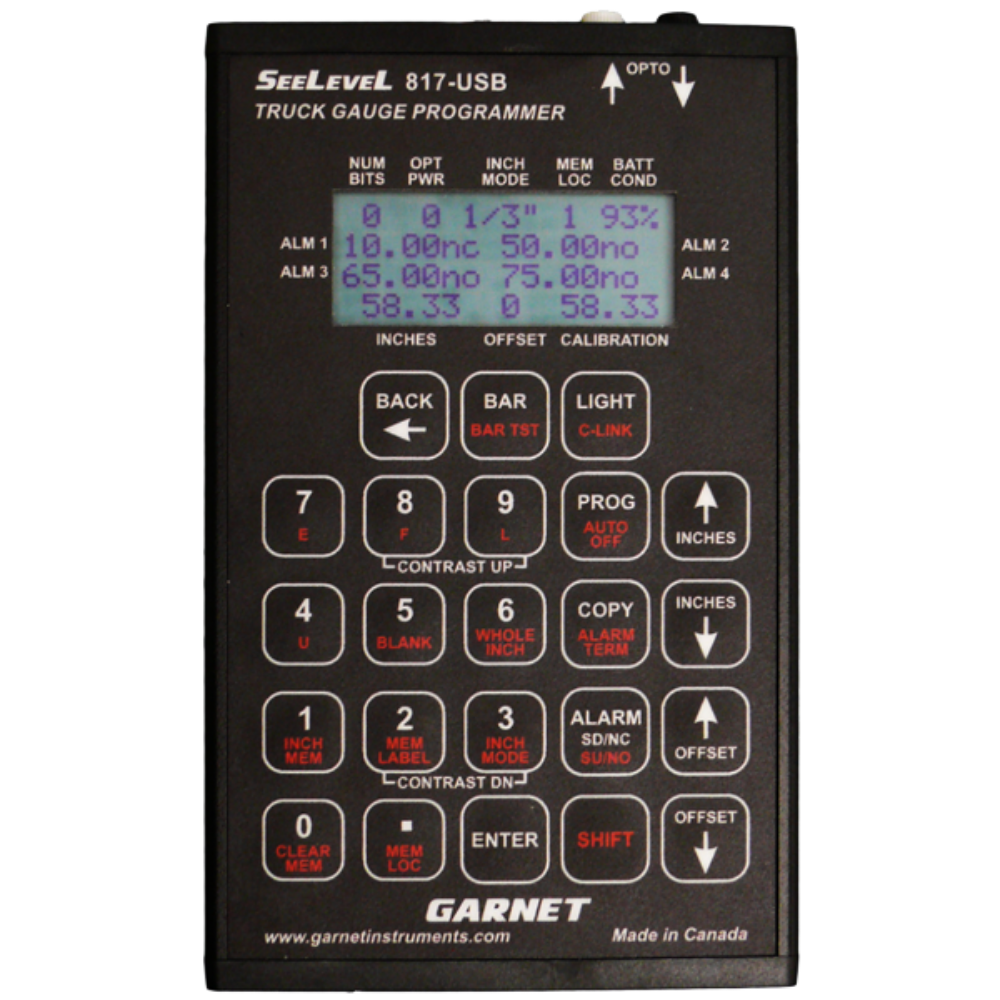

817-USB Truck Gauge Programmer

Item Code: 817-USB

The 817-USB Truck Gauge Programmer is an all-in-one tool for all SeeLeveL Transport products. The programmer can be used to diagnose problems, calibrate gauges, store alarm and test overfill control.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

CA$830.53
EA (1)

Specifications

Specifications

Enclosure Material: Aluminum
Enclosure size: 106 mm wide (4.175") x 160 mm high (6.30") x 28.5 mm deep (1.12")
Display type: LCD, backlit. Can be turned on or off to conserve batteries
Display size: 60.96 mm ( 2.4") x 24.13 mm (0.95")
Battery power: Powered by alkaline AA batteries, field-replaceable with no memory loss
Temperature range: Use in dry, moderate temperature locations

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library
