806-Bi SeeLeveL Annihilator System

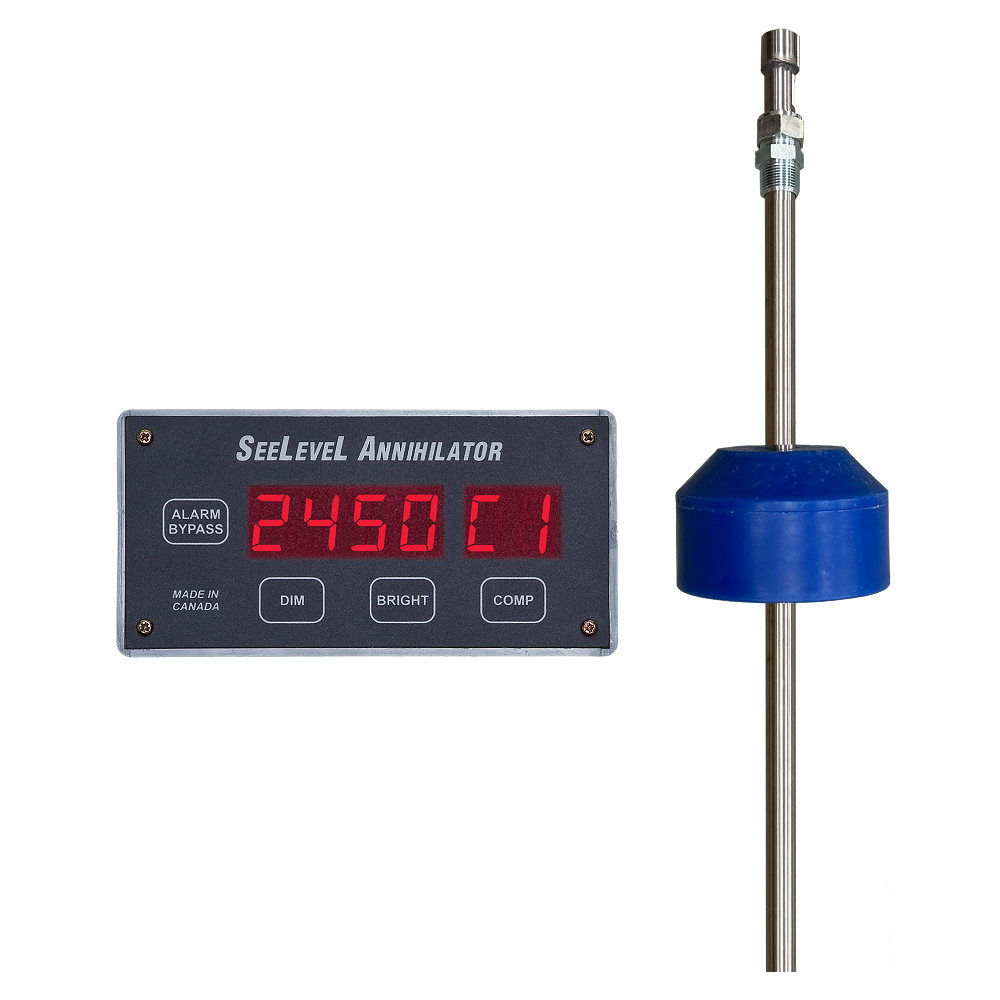

Complete 806-Bi SeeLeveL Annihilator System monitors the fluid level of Non-Flammable liquids. System comes standard with (1) 806-T 304 or 806-T 316 sender bar, (1) 806-Bi display, (1) 806-T Poly Truck Float. Customize your sender bar by upgrading the compression fitting or selecting our one of our sender bar cut options. Display programming options are also available. Detailed cut length or programming instructions can be added to the comment box at the bottom of the order page. Please review the Terms of Service for Custom Products before submitting your order.



Float support and NPT collars are sold separately.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

Main Product

Required Product 1

Option for programming

Program display, set offset and store alarms (CA$110.00)
Option for 806-T Bar

Options for cutting the 810-X bar

001-ACID_WELD (CA$175.00)
001-CRUDE_WELD (CA$110.00)
001-CUT_PREPARATION (CA$110.00)
001-UNCUT (CA$0.00)
Comp Fit Selection Options

Options for End Cut 1

Options for End Cut 2

Required Product 2

Comment

Comment
Main Item Price CA$ 0.00
Optional Item Price CA$ 1,988.40
Price for this Configuration CA$ 1,988.40
CA$1,878.40

Specifications

Specifications

Resolution: 1/4" (6 mm)

Accuracy: +/- 0.5 cm (+/-0.2")

System Power:  Powered by 12 Vdc truck power through the display.

Input Power: 10-15 Vdc, 180 mA max. (minimum 1-amp fuse)

Product temperature range: -40°F to +194°F (-40°C to +90°C)

Alarm output range: 1 amp at 15 Vdc.

Maximum tank height: 1 amp at 15 Vdc

Display Enclosure:  Material - ABS plastic, Size - 5”x 21/2" (127 mm) wide x 5”x 21/2" (64 mm) high x 1 2/3" (43 mm) deep

Display Ambient temperature range: -40°F to +140°F (-40°C to +60°C) ambient

Display External power:  Powered by 12 Vdc truck power

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library
